Model: HTI-ACM200

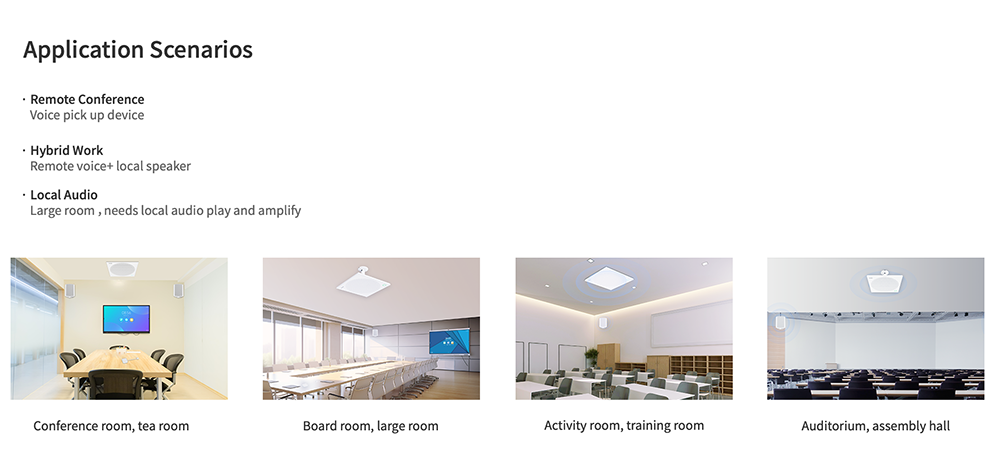

The ceiling microphone system is the ultimate productivity tool for different spaces to address the need for sound pickup and amplification in a broader conference space.
Design

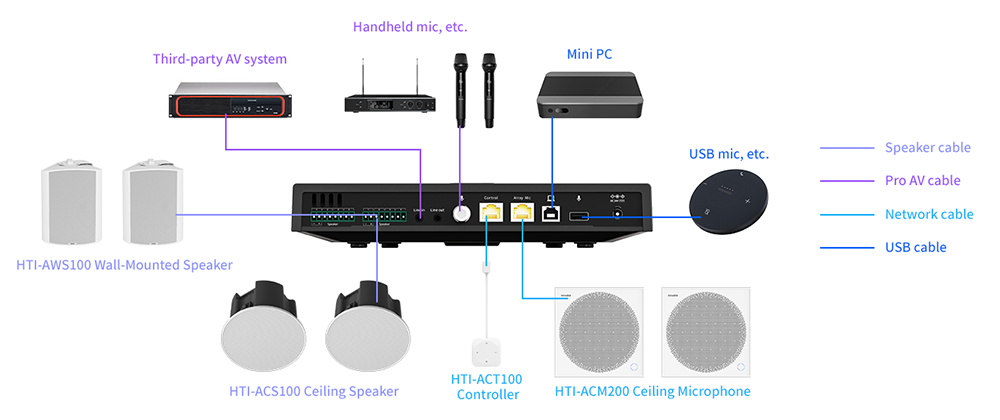

Connection
Setup

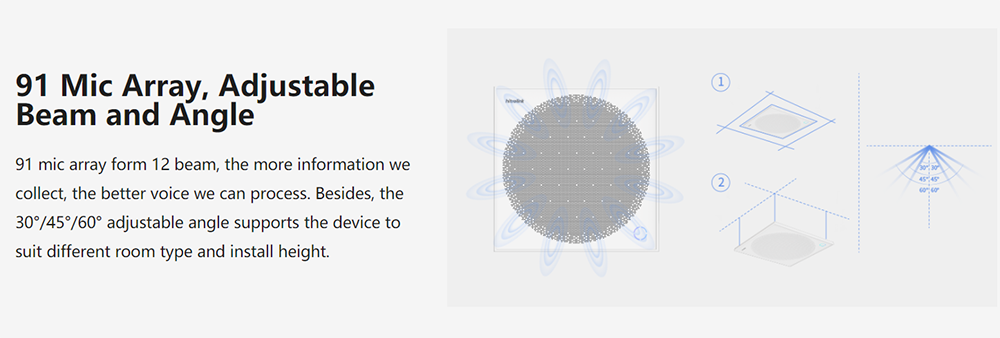

| Microphone | Microphone Type | 91 Units MEMS Microphone |
| Position | Omnidirectional | |

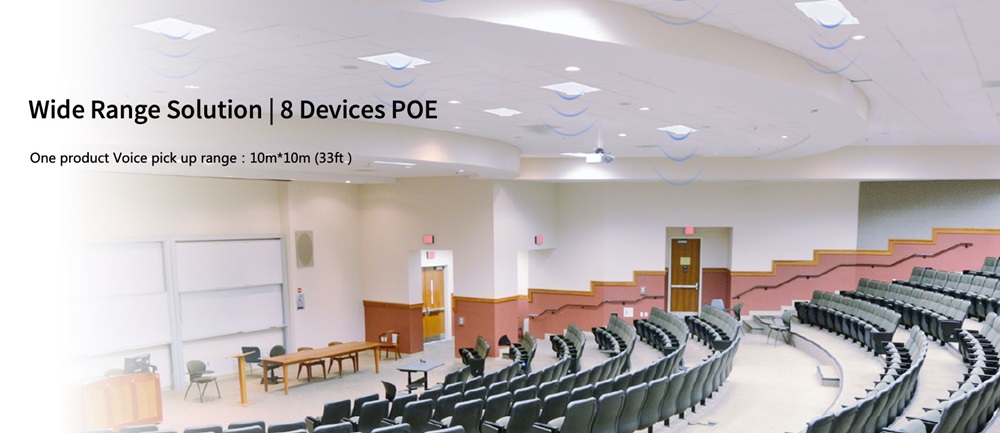

| Effective Pickup Range | 10m*10m(33ft*33ft) | |
| Sensitivity | -38dBFS 94dB SPL@1kHz | |
| S/N | 63dBA/Pa 94dB SPL@1kHz, A-weighted | |
| Audio | Beamforming | 12 Deep Sidelobes Beamforming |
| Pickup Beams Switching | Adaptively | |
| AGC | Support | |
| Full-Duplex | Support | |
| Echo Cancellation | Support | |
| Howling Suppression | Support | |
| Reverberation Suppression | Support | |
| Smart Reverberation | Support | |
| Background Noise Suppression | Support | |
| Daisychain | Mode | POE via UTP cable(CAT6) |
| Number | Maximum daisy-chain 8 unites | |
| Connectivity | RJ45 Ethetnet Ports | 2 |
| Reset | 1 | |
| Structure | Material | Alufer |
| Color | White | |
| Product Dimensions | 603*603*45.4mm(23.74*23.74*1.79 inches) | |
| Package Dimensions | 719*713*105mm(28.31*28.07*4.13 inches) | |
| Net Weight | 6.5KG | |
| Gross Weight | 8.46KG | |

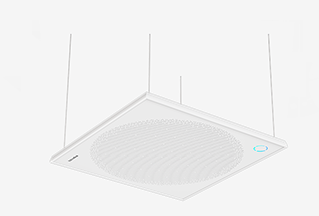

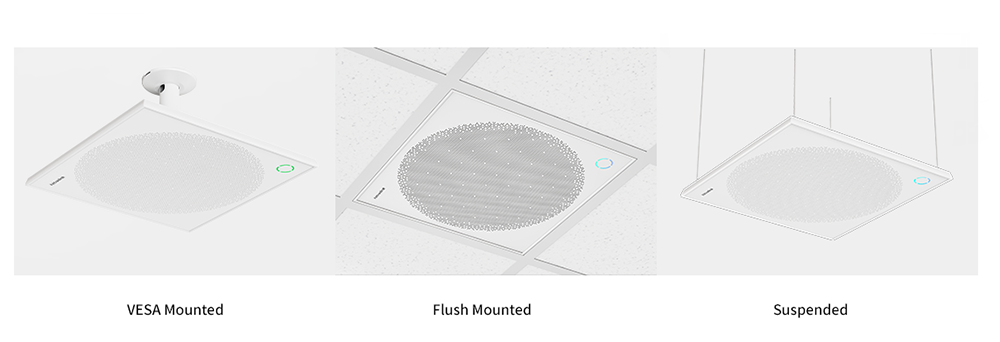

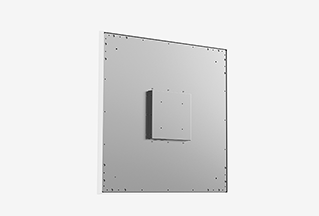

| Installation | Suspended/VESA Mounted/Flush Mounted | |
| Environment | Operating Temperature | 0 °C ~+50 °C |
| Operating Humidity | 20%~80%(Nocondensing) | |
| Storage Temperature | –10 °C ~ +60 °C | |
| Storage Humidity | 5%~95%(Nocondensing) | |
| Packing List | HTI-ACM200 | 1 |
| 10m UTP cable(CAT6) | 1 | |
| Accessory Package | 1 |
