Model: HTI-UCBAR400

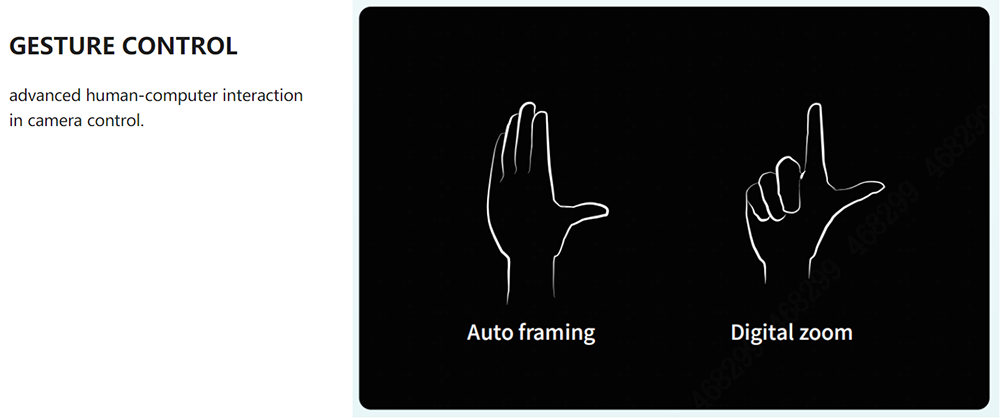

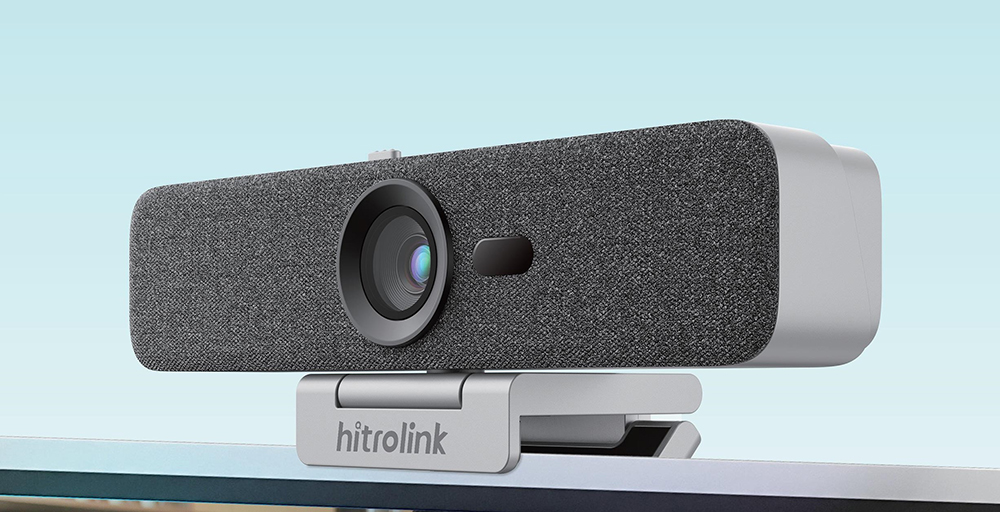

HTI-UCBAR400 is a 2K USB 3 in 1 camera that integrates gesture control and auto framing Al functions . It can realize auto framing on /off, zoom in/out control by certain gestures, with this feature, users can get more flexible experience in the video call. With built-in mic and speaker, it can support all personal conference needs in one device and also be applied in other industry such as hybrid learning, face recognition, live streaming, etc.

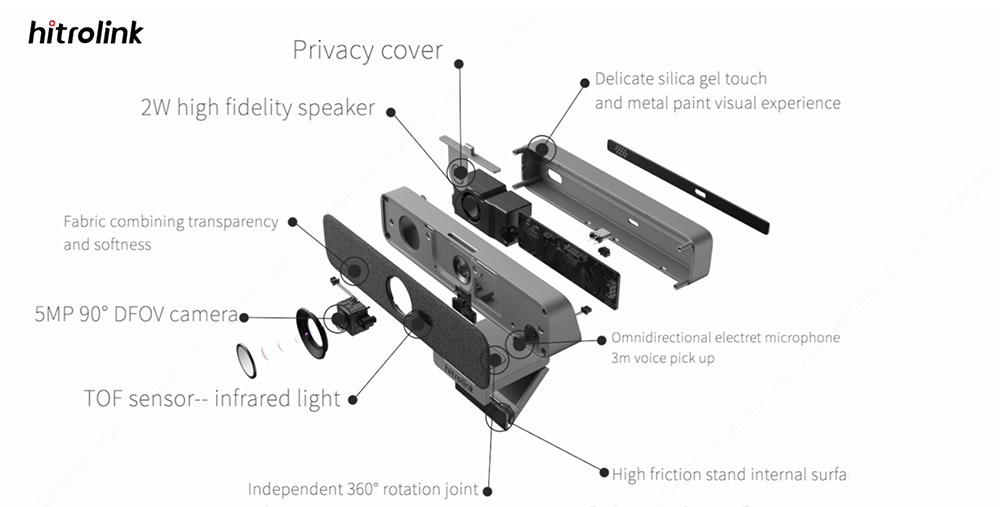

Design

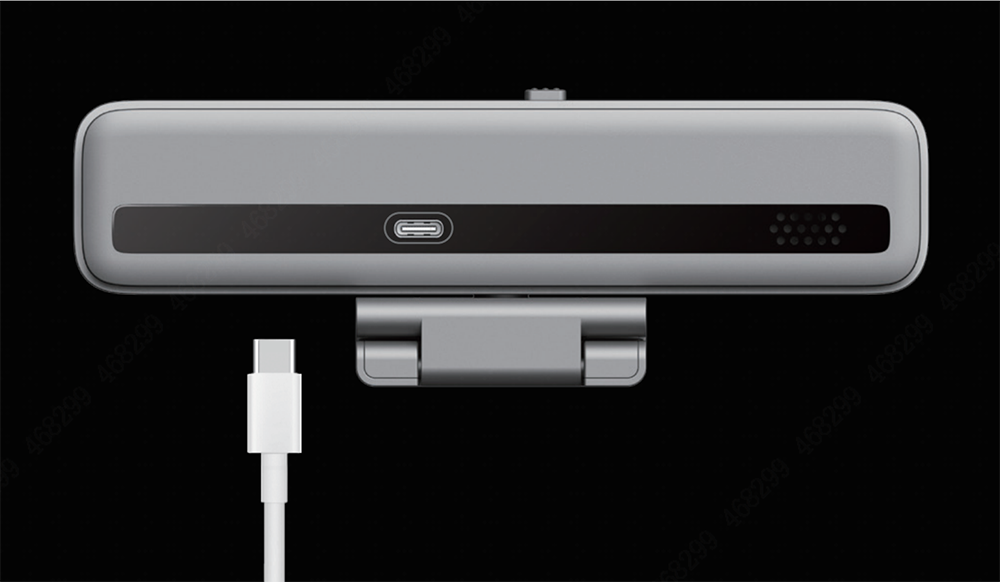

Connection

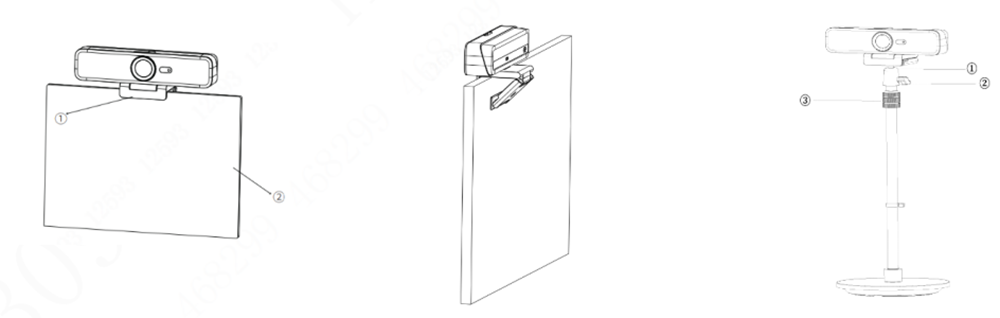

Setup
| Camera | Sensor Type | 1/3 inch CMOS, 4MP |
| Video Format | 2560*1440@30fps/25fps 1920*1080@60fps/50fps/30fps/25fps 1280*720@60fp/50fps/30fps/25fps 640*480@60fp/50fps/30fps/25fps 640*360@30fps/25fps |
|
| Compression | H.264/MJPEG/YUV | |
| UVC Protocol | USB2.0, UVC1.0/1.1 | |
| Field of View (H) /(D) | Horizontal: 80°; Diagonal: 90° | |

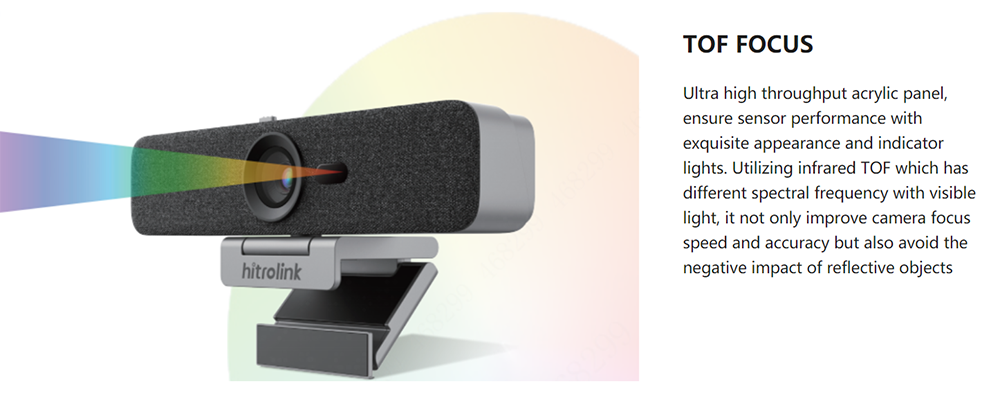

| Focus | Auto focus, support 0.1~5 meters | |
| Exposure | Auto, BLC, LC | |
| Shutter | Speed 1/30s ~ 1/10000s | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
| SNR | 55db | |
| White Balance | Auto | |
| Focal Length | 3mm | |
| Lens Interface | M8 | |
| Distortion | <1% | |
| Close-up distance | 0.1 m | |
| General | Working Status Indicator | Power-on White Light |
| Privacy Shade | Support | |
| USB cable | 2m Type A to C | |
| Stands | 360° horizontal rotation 90° vertical rotation |
|
| Power Supply | USB DC 5V | |
| Color | Grey | |
| Max. Power Consumption | Max 2.5W | |
| Dimension | 156*54*48 mm(6.14*2.12*1.89 inch) | |
| Net Weight | 150g(0.33lb) | |
| Box Dimension | 132*178*73mm(5.19*7.01*2.87 inch) | |
| Box Weight | 400g(0.88lb) | |
| Operating Temperature | 0°~+40°(+32℉~+122℉) | |
| Operating Humidity | < 95% (Noncondensing) | |
| Microphone & Speaker | Mic type | Built-in Omnidirectional electret microphone |
| Pickup Distance | Omnidirectional, Pickup Distance 3meters with clear, uninterrupted, and noiseless voice | |
| Audio Coding Format | 16KHZ Mono 16 bit PCM | |
| Beamforming | Support | |
| Speaker output | 2W | |
| Frequency response | 100Hz~8KHz |
