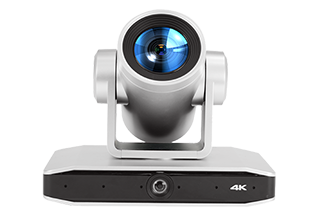

Model: HTI-XC900

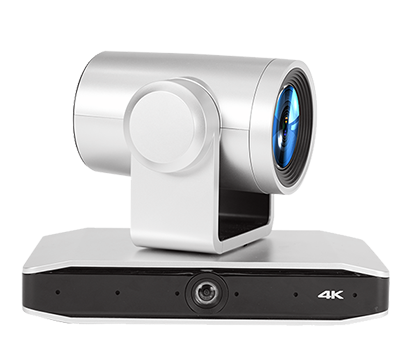

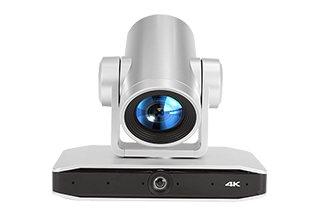

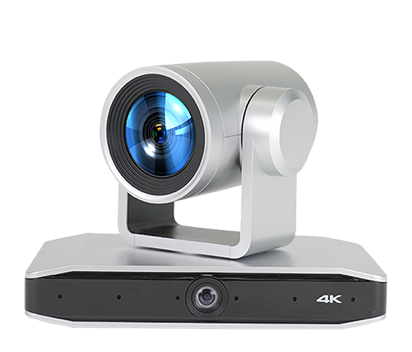

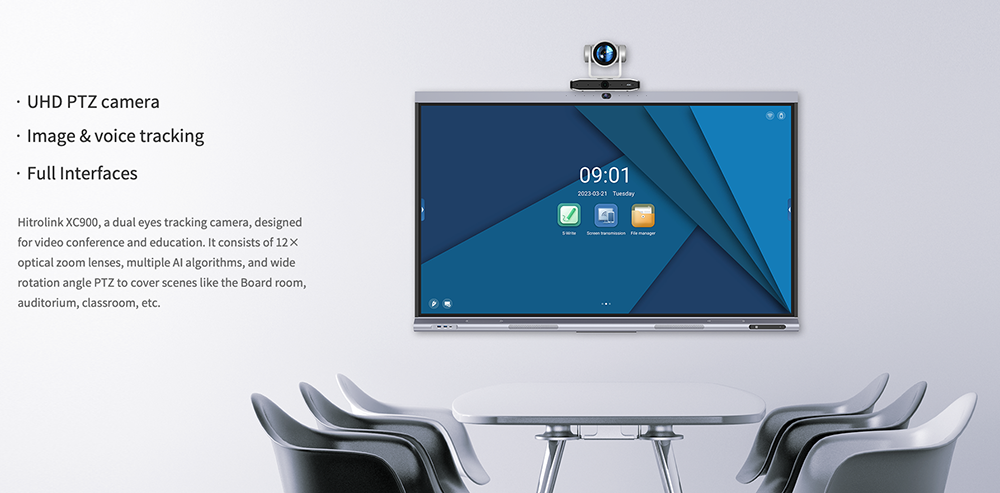

Hitrolink XC900, a dual eyes tracking camera, designed for video conference and education. It consists of 12× optical zoom lenses, multiple AI algorithms, and wide rotation angle PTZ to cover scenes like the Board room, auditorium, classroom, etc.
Design

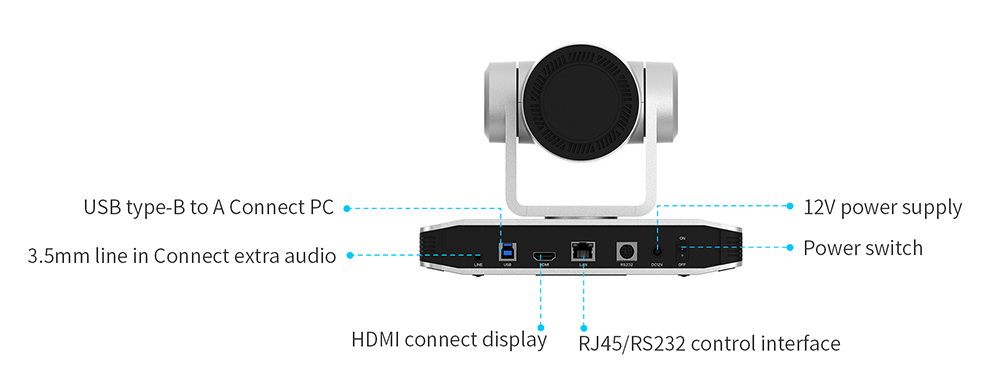

Connection

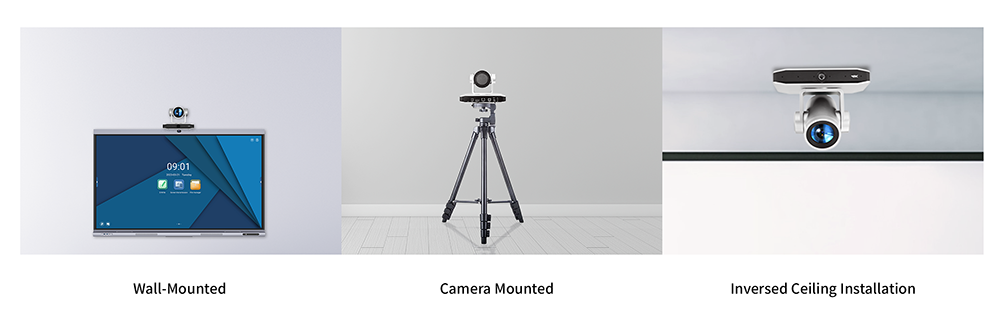

Setup

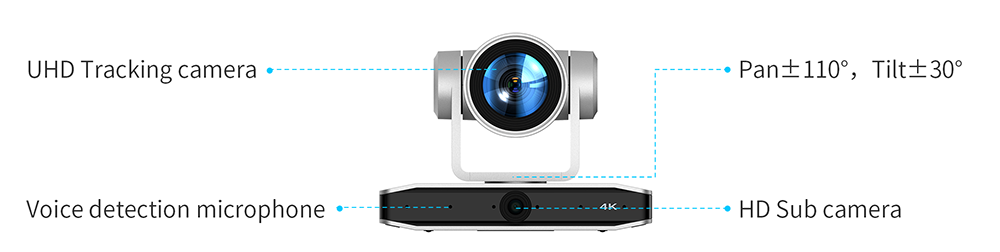

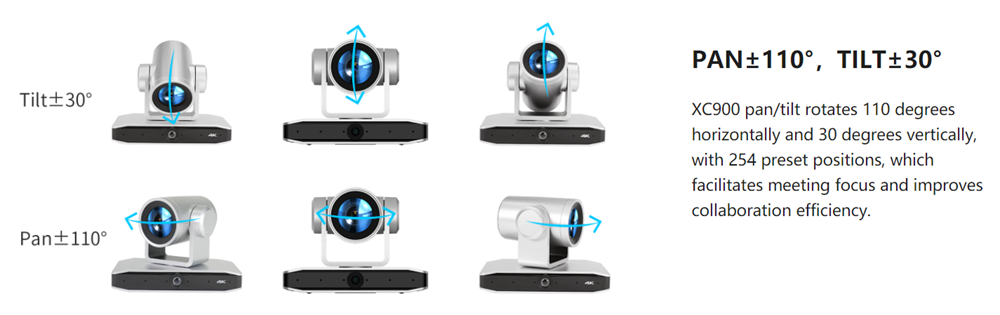

| Device Parameters | Pan angle | ±110° |
| Tilt angle | ±30° | |
| Lens Optical Zoom | 1 2x optical zoom | |
| Field of View | 7.6°(narrow angle) 80.5°(wide angle) | |
| Aperture Factor | F1.8～F3.6±5% | |
| Image Sensor | 1/2.8 inch high quality CMOS sensor | |
| Effective Pixels | 8.51 MP, 1 6:9 | |
| Digital Zoom | 15X | |
| Panoramic Lens | Fixed Focus Lens | |
| Viewing Angle | 110.2°101 .8°69.5°(DHV) | |
| Aperture | F2.0±5% | |
| Focal Length | f/1 .89mm | |
| Minimum Illumination | 0.5Lux (F1.8, AGCON) | |
| Digital Noise Reduction | 2D& 3D digital noise reduction | |
| White Balance | Automatic/manual/one-key white balance/specified color temperature | |
| Focus | Automatic/manual/one key focus | |
| Aperture | FL8~ FL1 , CLOSE | |
| Shutter Speed | 1/25~1/20000 | |
| Backlight Compensation | On/Off | |
| Dynamic Range | Off/1 ~8 | |
| Video Adjustment | Brightness, hue, saturation, contrast, sharpness, black and white mode, gamma curve | |
| Signal-to-Noise Ratio | >50dB | |
| Video Signal | HDMI: 4KP30, 4KP25, 1080P30, 1080P25, 1080P29.97 USB3.0 output supports video formats including main stream: YUY2/NV1 2:1 920 X1 080/1 280X720/1 024X576/800X 600/800 X448/640X360/480X270/320X 1 80@1 0/5fps; MJPG/H264:3840*21 60/1 920X1 080/1 600X896/1 280X72 0/1 024X576/960X540/800 X 600/800 X 448/720 X 576/720 X 480/640 X 360/640 X 480/480 X 270/352 X 288/320 X 240@30/25/20/1 5/1 0/5fps; Secondary code stream:YUY2/NV1 2:1 280 X 720/1024 X 576/800 X 600/800 X448/640 X 360/640 X 480/480 X 270/320 X 1 80@30/25/20/1 5/1 0/5fps; MJPG/H264:1 920 X1 080/1 600 X 896/1 280 X 720/1 024 X 576/960 X 540/800 X 600/800 X 448/720 X 576/720 X 480/640 X 360/ 640 X 480/480 X 270/352 X 288/320 X 240@30/25/20/15/10/5fps; | |

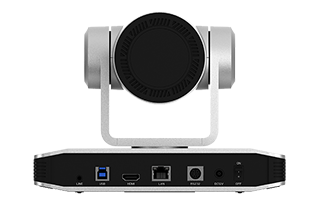

| Interface Function Performance | Product Interface | HDMI, LAN (support POE), USB3.0, A-IN, RS232-IN, DC1 2V power supply, power switch |
| Video Output Interface | HDMI, LAN, USB3.0 LAN interface supports: H.264, H.265; USB 3.0 | |
| Video Compression Format | LAN interface supports: H.264, H.265; USB 3.0 interface supports: MJPG, H264, H.265, YUY2, NV12 | |
| Audio Input Interface | Dual-channel 3.5mm linear input | |
| Audio Output Interface | HDMI, LAN, USB3.0 | |
| Audio Compression Format | AAC, MP3, G.711A | |
| Network Interface | 1 0M/1 00M/1 000M adaptive Ethernet port, support POE power supply, support audio andvideo output | |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T281 8L VISCAOVERIP, IP VISCA, RTMPS, SRT, support remote upgrade, remote restart, remote reset | |
| Control Interface | RS232-IN | |
| Serial Communication Protocol | VISCA/PELCO-D/-P; support baud rate 115200/38400/9600/4800/2400 | |
| USB Communication Protocol | UVC (video communication protocol), UAC (audio communication protocol) | |
| Power Interface | HEC3800 power socket (DC12V) | |
| Power Adapter | Input AC110V-AC220V; output DC12V/2.5A | |
| Input Voltage | DC12V±10% | |
| Input Current | <1A | |
| Machine Power Consumption | <12W | |
| AI Function | Intelligent Voice Positioning and Tracking | Support |
| Intelligent Framing | Support | |
| Other Parameters | Weight (approx.) | 1.7kg |
| Size | 220(L)mm*144mm(W)*159mm(H) |
