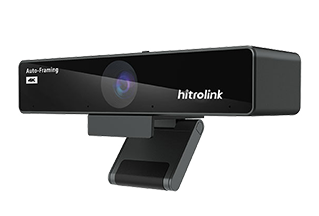

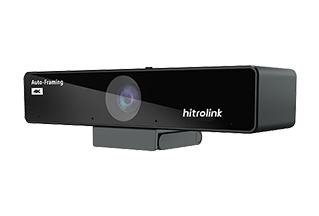

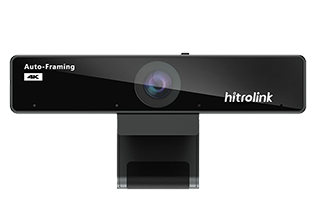

Model: HTI-UC390
4K UHD Resolution | 120° Ultra Wide Angle Omnidirectional Microphone | Support Auto-Framing
Design
Connection
Setup
| Camera | Sensor Type | 1/2.8 inch CMOS, 8M pixel |
| Video Format | YUV: 480P@30fps/25fps；360P@30fps/25fps MJPEG: 1080P@30fps/25fps；720P@30fps/25fps；480P@30fps/25fps；360P@30fps/25fps； H264: 2160P@30fps/25fps；1080P@30fps/25fps；720P@30fps/25fps；480P@30fps/25fps；360P@30fps/25fps； |
|
| Compression | H.264/MJPEG/YUV | |
| UVC Protocol | UVC1.1/1.5 | |
| Horizontal Field of View | Horizontal: 110°; Diagonal: 120° | |
| Exposure | Auto, BLC | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
| Microphone | Position | Built-in |

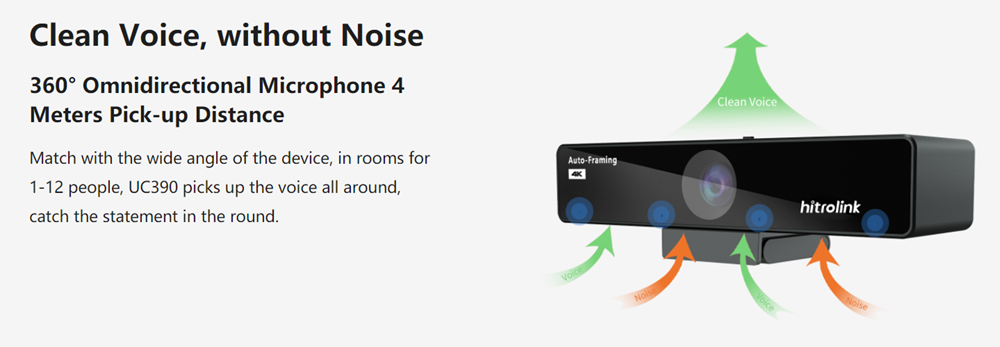

| Pickup Distance | Omnidirectional, Pickup Distance Up to 4m | |
| Beamforming | Support | |
| General | Video Interface | 1 * USB2.0 |
| USB Cable Length | 3m | |
| Working Status Indicator | Power-on White Light | |
| Privacy Shade | Support | |
| Power Supply | USB 5V | |
| Color | Black | |
| Max. Input Current | 1A | |
| Max. Power Consumption | Max 5W |
