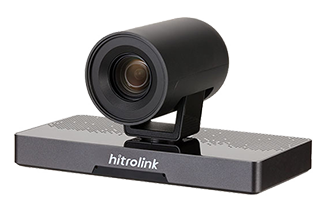

Model: HTI-UC600
1080P USB PTZ Camera designed for medium & large meeting rooms, by controlling the position of the lens, speakers can be captured in a wide range.

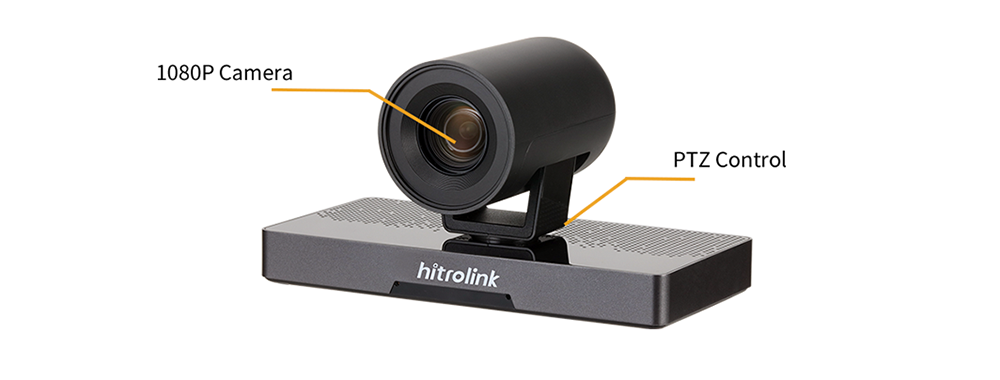

Design

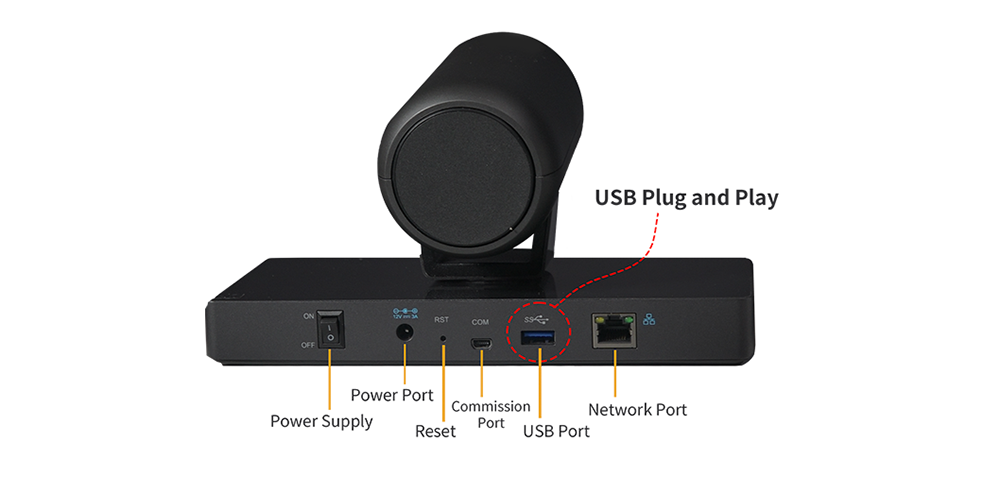

Connection
Setup
| Video | Image Sensor | 1/2.8'' CMOS |
| Effective Pixels | 2.13MP | |
| Resolution | 1080P60fps、1080P25/30fps、720P60fps、720P25/30fps | |
| Video Codec | H.264、MJPEG、YUV | |
| Lens Zoom | 10x | |
| Field of View | 6.43°~60.9° | |
| Focus | Manual/Auto | |
| Noise Reduction | 2D NR/3D NR | |
| Others | Auto Gain Control、WDR、White Balance | |

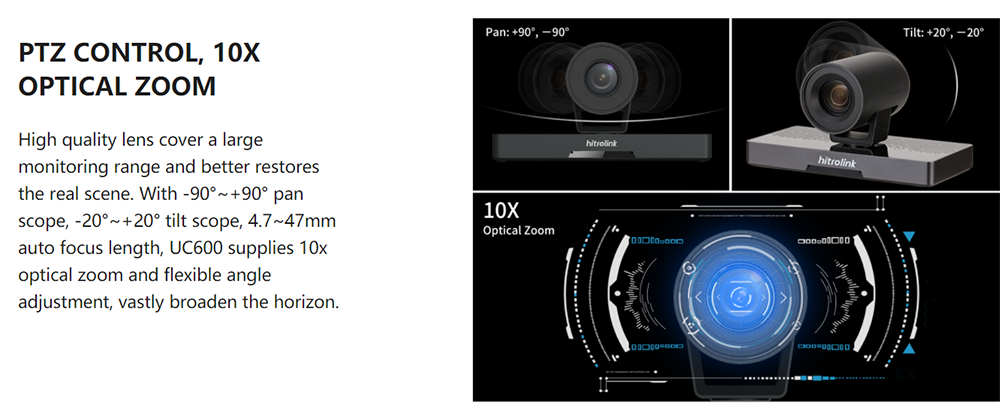

| PTZ | Pan | Pan: -90°~+90° |
| Tilt | Tilt: -20°～+20° | |
| Presets | 255 | |
| USB | PTZ Control | Support |
| Interfaces | Video Output | 1x USB 3.0/2.0 |
| Serial Port | 1x RS232 | |

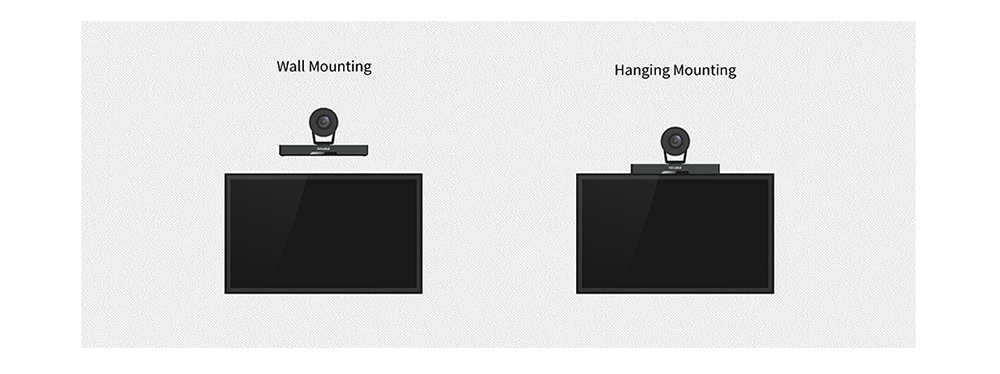

| Installation | Installation | Horizontal/Ceiling/Wall |
| Physical Features | Power Supply | 12V DC(10.8～13.0V DC) |
| Dimensions(W×D×H) | 218mmx119mmx119mm(8.6'' x 4.7'' x 4.7'') | |
| Weight | 1.8kg(3.97lb) | |
| Color | Black |
