EN

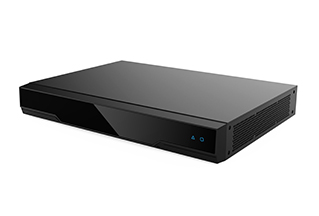

Model: HTI-TS520
H.265 video compression/ 4K resolution/ 1080P@60fps dual stream. OPUS audio codec, 48KHz sample frequence. Supports USB connection. to omnidirectional mic. In the event of a 30% packet loss, the conference audio and video is unaffected. Multiple video and audio interfaces including HDMI, VGA, 3G-SDI, HDCVI.Supports infrared remote control/wireless mouse/keyboard, etc.
| Video | Video Codec | H.265, H.264 HP, H.264 BP, H.263, H.263+ |
| Video Resolution | Main Stream, 1080P, 720P, 4CIF, CIF Demo Stream, 1080P, UXGA, WXGA, SXGA, XGA,SVGA, VGA | |
| Frame Rate | 25fps, 30fps, 50fps, 60fps | |
| Video Bitrate | 64Kbps~10Mbps | |
| Dual Stream | Dual 1080P@60fps | |
| Audio | Audio Codec | OPUS, G711a, G711u, G722, MP3 G722_1c, AAC_LC, G719, G722.1, G728, G729 |
| Audio Sample Rate | 8KHz–48KHz | |
| Audio Bitrate | 8Kbps ~ 256Kbps | |
| Audio Processing | AEC (Acoustic Echo Cancellation) , AGC (Automatic Gain Control) , ANS (Automatic Noise Suppression),Self-Adaptive Post-filtering, Audio Error Correction and Lip Sync | |
| Communicaton | Communicaton Protocols | ITU-T H.323, IETF SIP |
| Dual Stream Protocols | H.239, BFCP | |
| Transmission Protocols |
IPv6/IPv4, TCP/IP, FTP/FTPS, RTP, RTCP, HTTP/HTTPS, SNMP, SSH, DNS, NTP, PPPoE, DHCP, SRTP, TLS |
|
| other Protocols | H.221, H.225, H.235, H241, H.245, H.281, H.460 | |
| Network | Network Packet LossTolerance | In the event of a 30% packet loss, the conference audio and video is unaffected |
| Network Delay Tolerance | Normal conference processing for up to 800ms delay | |
| other Features | Audio priority/Packet retransmission/Intelligent speed control/error correction | |
| Security | Physical environment | Adopts reliable designs (environment/safety/EMC/thermal) to ensures the system runs stably for a long time |
| Network transmission |
Support H.235/SRTP/TLS/AES 128/AES 256 encryptions, etc. Support conference access password/SSH/HTTP/ WEB administrator password |
|
| Interfaces | Video Inputs | 2 × HDMI, 1 × 3G–SDI, 1×CVBS, 1 × HDCVI, 1 × HDMI/DVI/VGA/YPbPr |
| Video outputs | 2 × HDMI, 1 × 3G–SDI, 1 × HDCVI, 1 × HDMI/DVI/VGA/CVBS/S–Video | |
| Audio Inputs | 2 × XLR, 2 × RCA, 1 × 6.35mm, 1 × DH–AI, 1 × HDMI | |
| Audio outputs | 4×RCA, 1 × 6.35mm, 1×HDMI | |
| Network | 2 × RJ45 10/100/1000M self–adaptive network port | |
| USB | 1 × USB port | |
| Control | 2 × RS232/RS485 | |
| Remote control | Support IR remote control | |
| Physical Features | Power Supply | 12V DC |
| Power Consumption | ≤60W | |
| operating Conditions |
Temperature: 0°C~45°C (+10°F~+113°F) Humidity: 10%~80% (working) 0%~95% (storage) |
|
| Dimensions (W × D × H) | 435mm × 280mm × 66mm | |
| Package Size (W × D × H) | 573mm × 407mm × 173mm | |
| Weight |
Net Weight: 4.5kg (9.9lb) Gorss Weight: 6kg (13.2lb) |
