Model: HTI-XT510

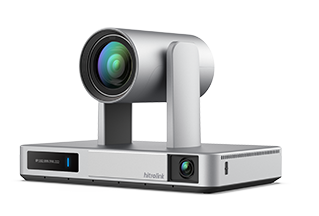

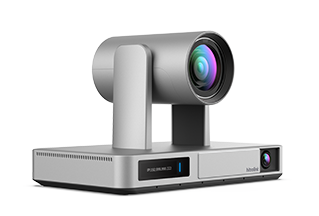

Buit-in camera, microphone array, and codec, featuring dual 4K UHD lenses for close-up and panoramic views, intelligently presenting from the best angle. Supports dual 4K UHD video calls and content sharing, 48KHz hi-fi voice pick up quality, providing an ultimate face-to-face communication experience.
| Video Features | Video Protocols | H.265、H.264 HP、H.264 BP、H.264 SVC、H.263、H.263+ |
| Main Stream resolution | 4K@60/30/25fps 1080p@60/50/30/25fps 720p@60/50/30/25fps 4CIF@30/25fps CIF@30/25fps |
|
| Frame Rate | 25fps、30fps、50fps、60fps | |
| Content Stream Encoding and Decoding | K@30/25fps 1080p@60/50/30/25fps 720p@60/50/30/25fps 4CIF@30/25fps(1080P、UXGA、WXGA、SXGA、XGA、SVGA、VGA) |
|

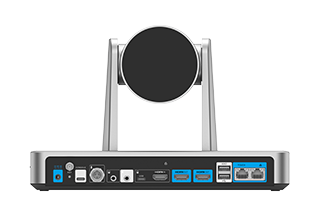

| Audio Interfaces | Audio Input | 1× Built-inMicrophone 1× DH-AIAO,which is a Digital Array Microphone Interface 1× 3.5mm Line In 1× Mini XLR Interface 1× HDMI,for Presentation Audio 1× USBTypeC,for Presentation Audio |
| Audio Output | 1×HDMI out1 1×3.5mm line out 1×DH-AIAO,which is a Digital Array Microphone Interface 1×HDMIOUT2 in recording mode |
|
| Video Interfaces | Video Input | Main Stream: 2× built in cameras ,Content share through 1× USB Type-C or 1 × HDMI IN |
| Video Output | 2× HDMI, or 1× USB 3.0 in USB camera mode | |
| Other Interfaces | USB Port | 2× USB Port |
| Hardware Network Interface | 1× RJ45 10/100/1000M LAN port | |
| WIFI | Support | |
| TOUCH Port | 1× RJ4510/100/1000M Lan port, supports connecting with Meeting Control Pad | |
| Lock Port | Support | |
| Remote Control | Support |
