Model: Conference Reservation System

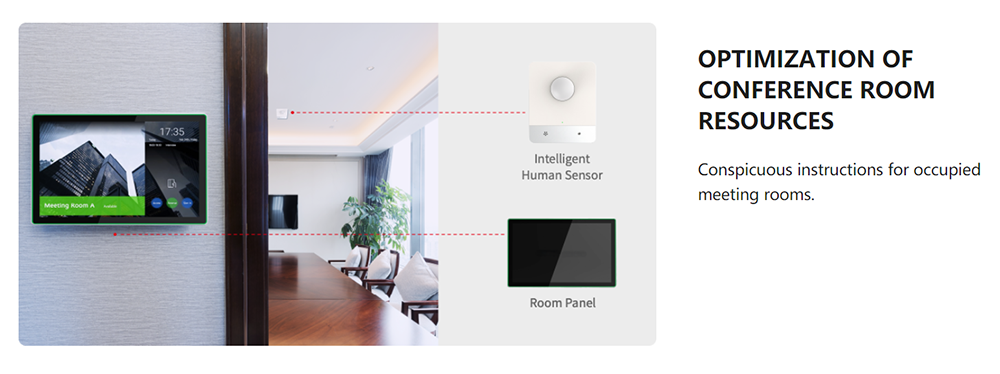

Hitrolink conference reservation system is an advanced conference solution for organizations, which can support three meeting booking modes, schedule management, two meeting access methods, conference room status management, and information display.

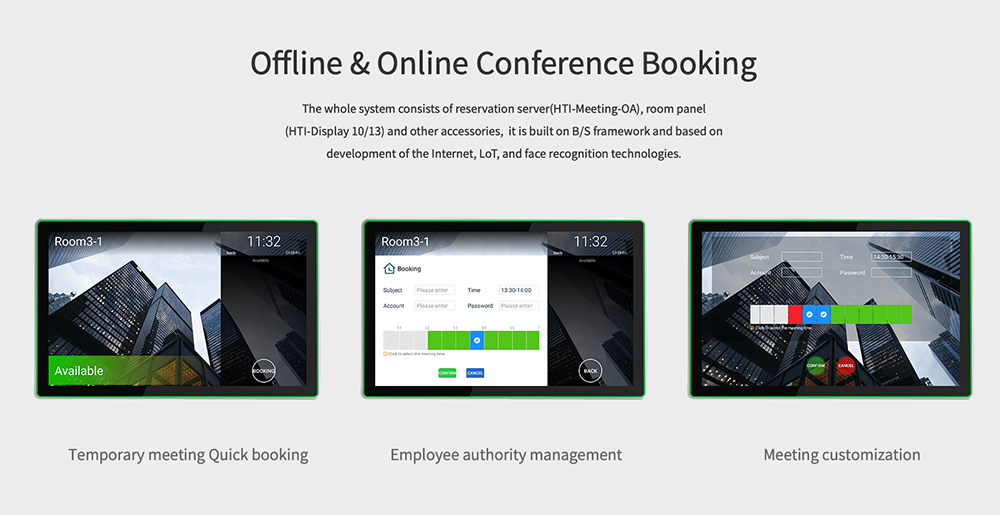

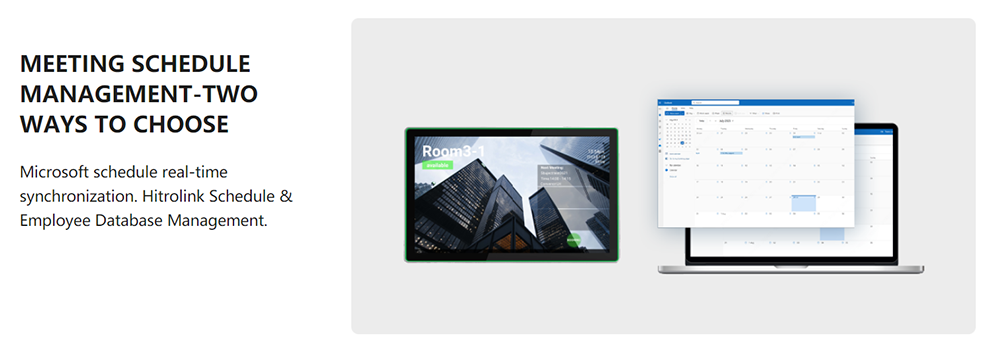

Software Interface

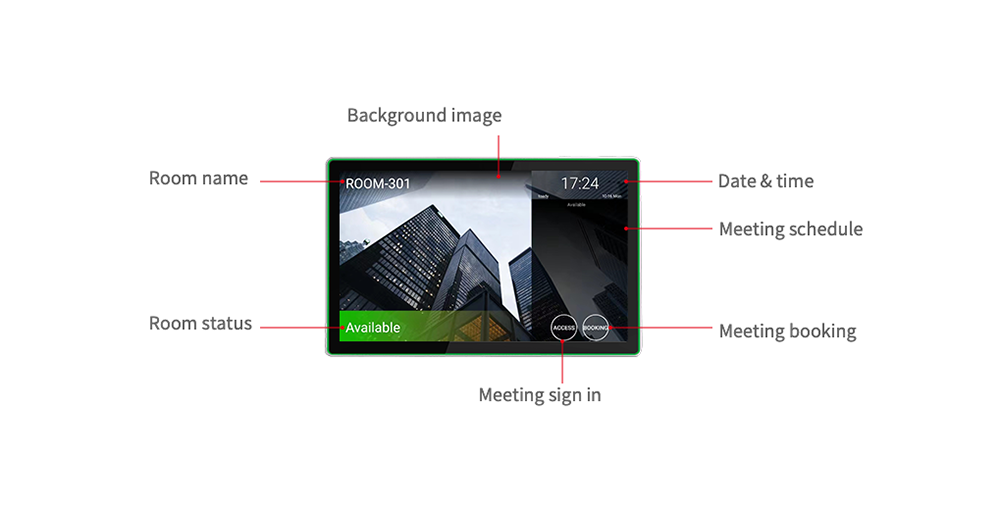

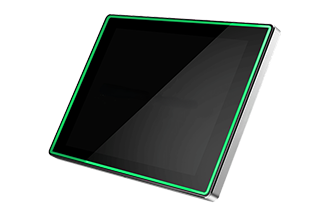

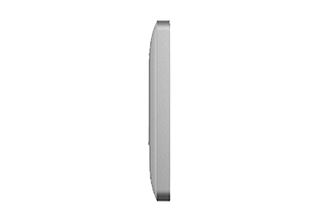

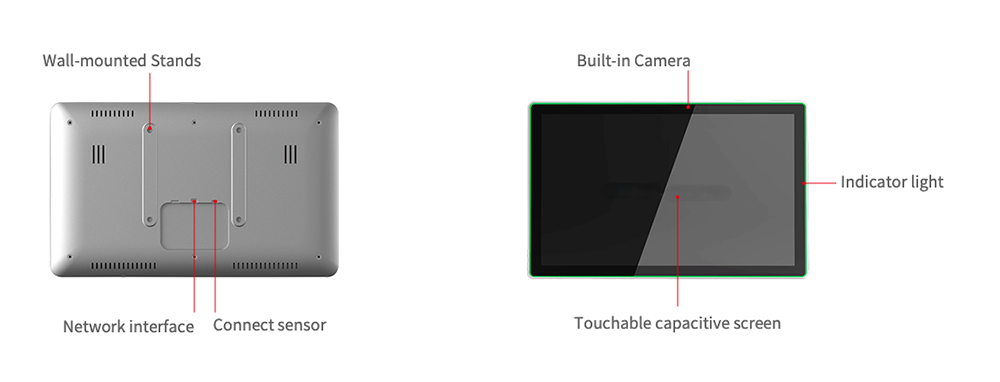

Room Panel Design
Server Design and Interfaces
| HTI-Display10/13 Series | OS | Android 5.1.1 |
| Processor | Arm Cortex-A17 Mali-T764 GPU | |
| Memory | 2GB | |
| Storage（EMMC） | 16GB | |
| TF card | Up to 32GB | |
| Touch screen | IPS 10.1-inch 1920 * 1200/IPS 13.3-inch 1920 * 1200 (viewing angle 89/89/89/89)13.3 inch 10-point touch capacitive screen | |
| Wi-Fi | WiFi IEEE 802.11b/g/n | |
| Bluetooth | V2.1+EDR、V3.0+HS | |
| Speaker | 1W，8Ω | |
| LED | Four circles of light band (red, green and yellow) | |
| POE | 36~58V DC In，IEEE802.3af | |
| RFID | ID：125K；IC：13.56M | |
| Zigbee gateway | Support ZigBee sensor with gateway function (optional) | |
| Timing switch | Support | |
| Camera | 500W HD face recognition camera | |
| HTI-Meeting-OA | CPU | Intel Apollo N3450 I5 |
| Main frequency | 2.2GHz | |
| Storage | 16GB RAM+64GB EMMC 128GB SSD | |
| Bluetooth | 4.2 | |
| Interface | USB3.0 * 2 HDMI2.0*1 LAN port * 1 DC IN*1 | |
| HTI-Smart-OS | Communication Protocol | Based on ZigBee HA Protocol |
| Detection Technology | PIR & Microwave | |
| Status Display | The red light is always on when sense human | |
| Transmission Protocol | IEEE 802.15.4 | |
| RF Characteristics | 2.4GHz 10dBm transmission power | |
| Detection Range | Diameter 6 meters (when the installation height is 3.6 meters) | |
| Detection Angle | 120 degrees | |
| Installation Height | 2.5-4m | |
| Delay Control | Min.:10sec±3sec; Max.:7min±2min | |
| Working Voltage | 4.5-6VD or battery powered | |
| Outline Specification | 85 * 64 * 22mm (L * W* H) | |
| LED | 1- device operation status indicator | |
| Interface | 1- Type-C interface | |

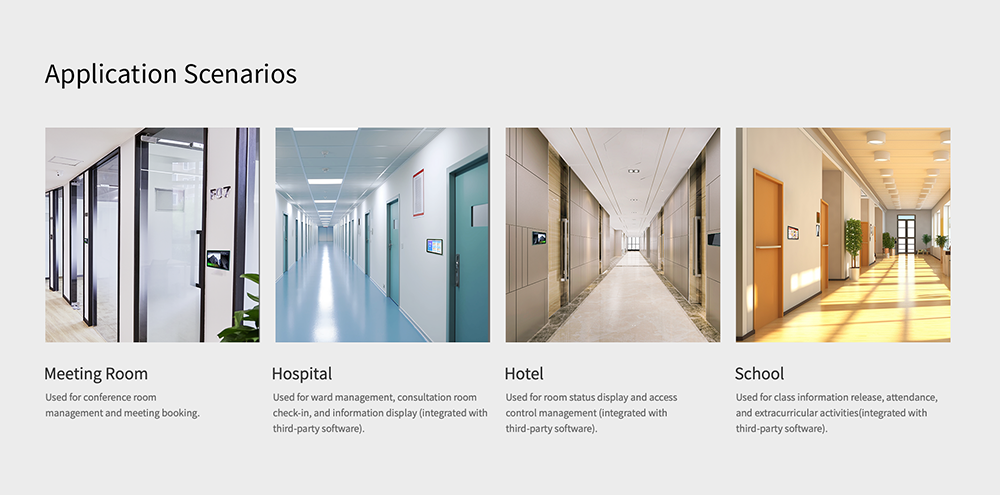

| Scenario | Mainly used in the reception room and conference room of the office building |
