Model: HiBoard-IAxxS2-C

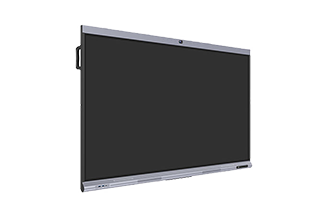

HiBoard-IA65/75/86S2-C is the new generation of intelligent conference tablet. It features 4K LED backlit display with 40-point touch. With the integration of camera, microphone and speaker, this series provides functions such as video communication, writing on whiteboard, scanning the QR code for meeting minutes, wireless projection etc.

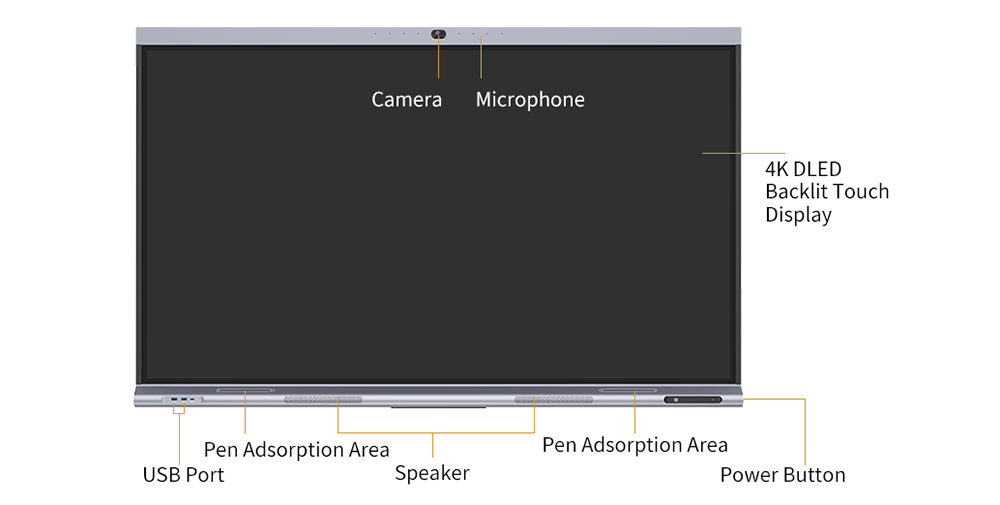

Design
Setup

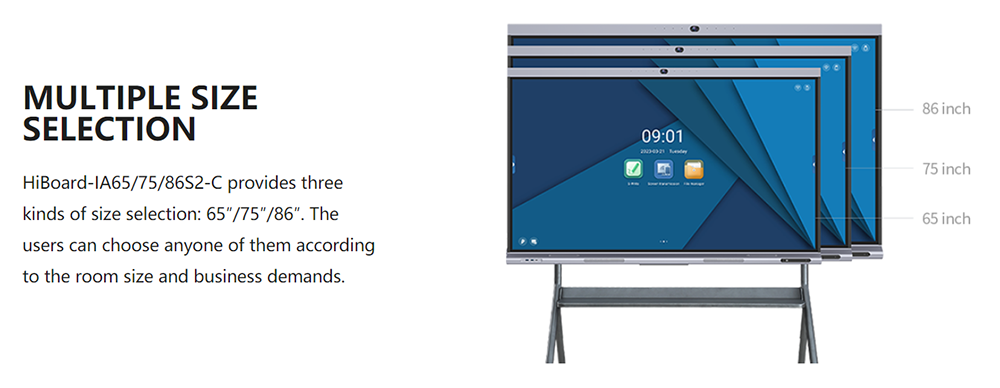

| Display | Dimensions | 65/75/86-inch |
| Display scale | 16:09 | |
| Backlight type | DLED | |
| Touch | Touch technology | IR |
| Touch point | 40 | |
| Response time | <10 ms | |
| Touch Accuracy | ±1mm | |
| Voltage | DC+5V±5% | |
| Camera | Pixel | 8MP |
| FOV | DIAGONAL,103° | |
| Array Size | MJPEG:3840*2160(30fps),1920*1080(30fps),1280*720(30fps) | |
| Array Mic | Array quantity | 8-mic |
| Pick up Area | 8m | |
| Speaker | Speaker | 2*15W+15W Subwoofer |

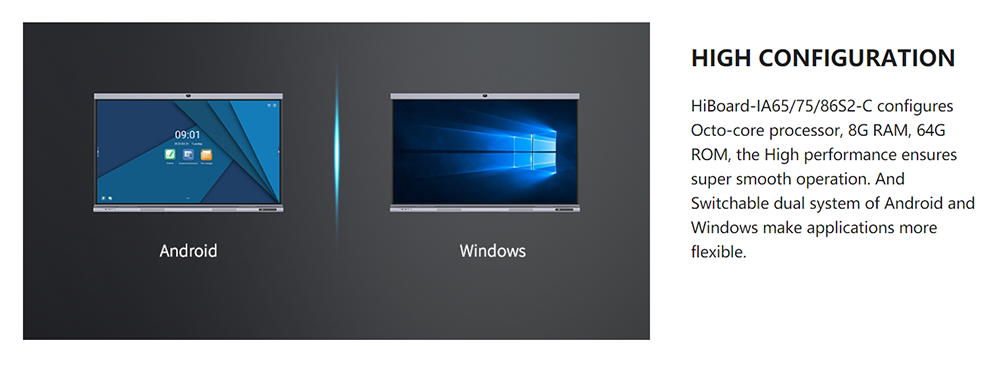

| CPU | Working Frequency | Max 2.2GHz for big and 2.0GHz for little |
| Core | Quad core A73+Quad core A53 | |
| Storage | RAM | 8GB |
| ROM | 64GB | |
| OS | Android | Android 11 |
| Input/Output Port (PC module not included) | Input/Output Port | HDMI IN*2;DP IN*1;AUDIO IN*1;AUDIO OUT*1;LAN*2; USB2.0*1; USB3.0*4;TOUCH*3;MIC IN*1;SPDIF*1;RS232 IN*1;HDMI OUT*1 |
| NFC | Support card type | MIFARE FeliCa |
| Read-write distance | <30mm | |
| Wireless network | Operating Frequency | 2.4GHz/5GHz |
| WI-FI Standard | 802.11a/b/g/n/ac | |
| Bluetooth | 2.1+EDR/4.2/5.0 | |
| Electrical | Power Requirements | AC 100 V ~ 240 V, 50/60 Hz |
| Standby Condition | <0.5W |
