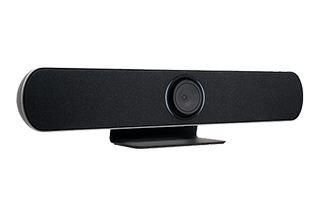

Model: HTI-UC500
UHD 4K Integrated Soundbar is designed for small meeting rooms, integrates with extraordinary mic, speaker and camera. The features of speaker tracking, Bluetooth and auto-framing make it more attractive.
Design
Connection

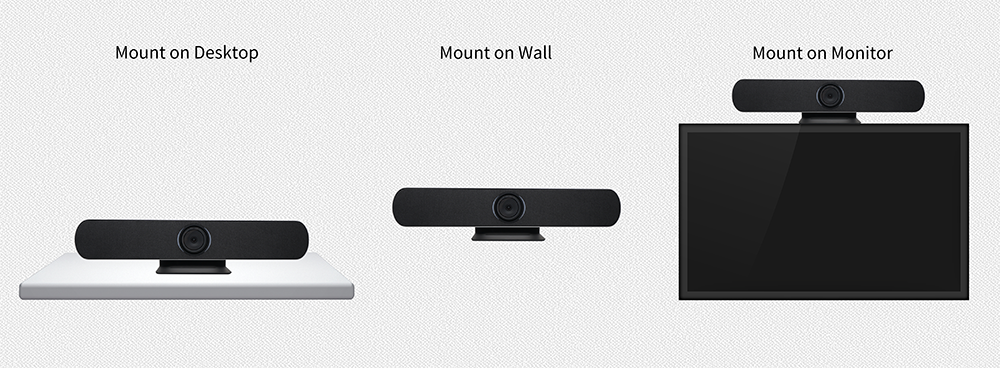

Setup
| Camera | Image Sensor | 1/2.5 inches, CMOS |
| Effective Pixels | 8.51MP | |
| Resolution | 4K/30, 1080P/30, 720P/30 etc | |
| Lens Zoom | 5x zoom | |
| Field of View | 121° (DFOV), 110° (HFOV), 75° (VFOV) | |
| Tripod Head | Mechanical PTZ (MPT) + e-PTZ(EPTZ), EPTZ: Horizontal/pitch ±15° | |

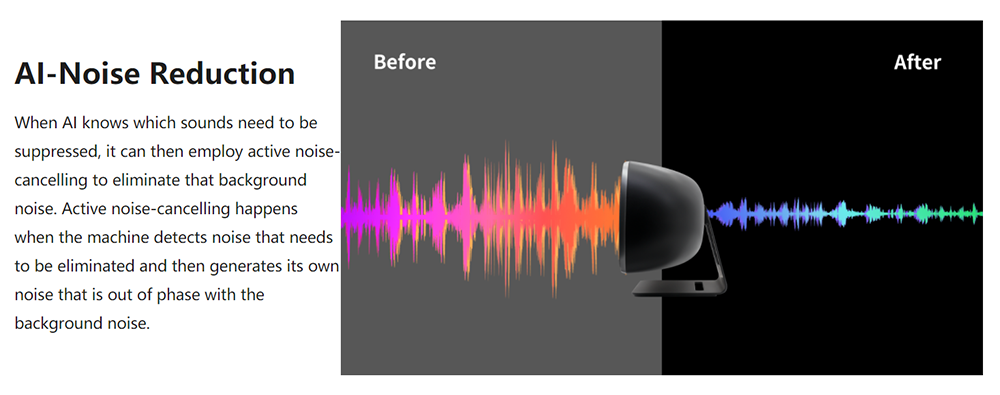

| Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
| Color System /Compression | H.264 / MJPEG /YUY2 /NV12 | |
| Backlight Compensation | Support | |

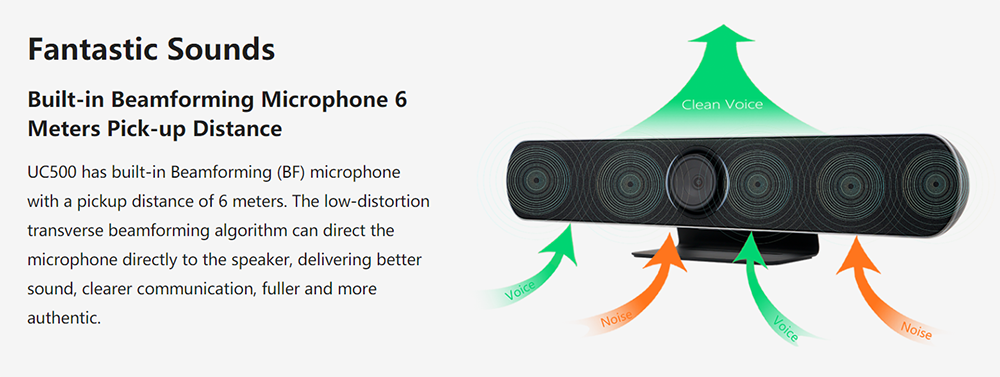

| Audio | Built-in Beamforming Mic | 6 meters pickup distance |
| USB | Communication protocols | UVC 1.1~1.5 |
| UVC PTZ Control | Support | |
| Type of Connection | USB 3.0, backward compatible with USB 2.0 | |
| Interfaces | HD Output | 1 x HDMI, Version 1.4b |
| USB Interface | 1 x USB3.0, Type C; 1 x USB2.0, Type A | |
| Wireless | Bluetooth data communication(Bluetooth 5.0) | |
| Physical Features | Power Supply | DC 12V, 2A (MAX) |
| Dimensions | 600mm*135mm*117mm | |
| Net Weight | 2.5Kg | |
| Safety Protection | Kensington Lock |
